Metal Stamping Parts

Product Overview

Custom metal stamping components function as high-strength structural elements, electrical interfaces, and precision-formed assemblies for OEM equipment. Produced from coil or sheet stock via mechanical and hydraulic presses, these components provide high repeatability, structural rigidity, and cost efficiency for medium-to-high volume batch production.

Execution relies entirely on build-to-print (B2P) contract manufacturing. Production strictly follows customer engineering drawings, 3D CAD files, material standards, and designated quality agreements without standard off-the-shelf catalog inventory.

Add to Inquiry

Metal Brackets And Supports

Metal Brackets and Supports are one of the most versatile product categories in our lineup. From equipment fixing brackets and pipe supports to building connectors and solar panel brackets, product

Add to Inquiry

CNC Stamping Service

CNC Stamping Service is our professional processing service for high-precision, high-complexity stamped parts. Compared to traditional stamping, CNC stamping has a significant advantage in processing

Add to Inquiry

Powder Coated Steel Parts

The core advantage of Powder Coated Steel Parts is the one-stop delivery capability of forming plus coating. We not only provide stamped and cold-formed steel parts, but also have a complete powder

Add to Inquiry

Metal Stamping Assemblies

Metal Stamping Assemblies are our integrated service combining stamping and assembly processes. Unlike single stamping parts, our product cover the entire manufacturing process. This includes

Add to Inquiry

Portable Spring Balancer

We manufacture durable portable spring balancer products for lifting, balancing, and tool support applications. With 30 years of experience in metal stamping and welding, our factory uses precision

Add to Inquiry

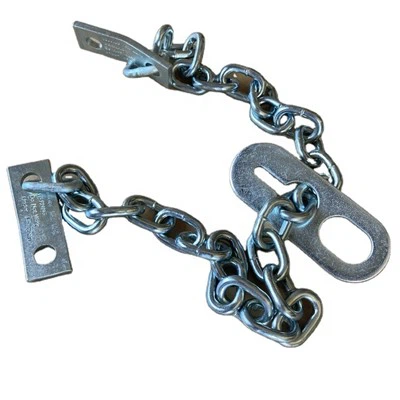

Rigging Chain Hooks

We manufacture durable rigging chain hooks for lifting, towing, and heavy-duty industrial applications. With 30 years of experience in metal processing, our factory applies precise stamping and

Add to Inquiry

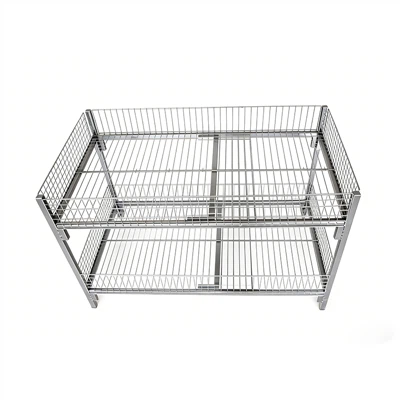

Metal Shelves for Supermarket

We manufacture high-quality metal shelves for supermarket and retail display applications. With 30 years of experience in metal stamping and welding, our factory produces stable and durable shelving

Add to Inquiry

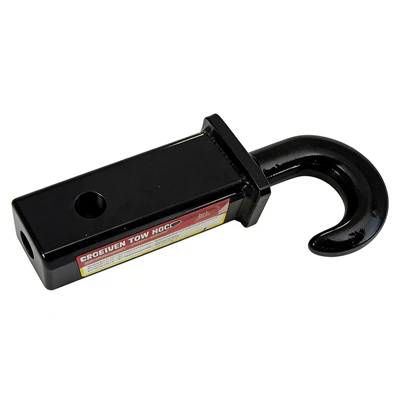

Top Rated Trailer Hitches

We manufacture durable top rated trailer hitches for towing, recovery, and transport applications. With 30 years of experience in metal processing, our factory uses precision stamping and welding

Add to Inquiry

Container Leveler

We manufacture durable container leveler products for container handling, lifting support, and leveling applications. With 30 years of experience in metal stamping and welding, our factory produces

Key Features

Grain Structure Continuity

Cold-working deformation aligns the metal grain along component contours, increasing yield strength and fatigue resistance compared to machined or cast equivalents.

Long-Run Dimensional Repeatability

Progressive die configurations maintain stable profile consistency across production lots exceeding 1,000,000 cycles.

Multi-Operation Consolidation

Combines blanking, piercing, bending, coining, and deep drawing into a single press stroke to minimize handling steps.

Material Utilization Rates

Optimized strip layouts minimize raw material scrap, reducing piece-part costs for serial manufacturing.

Net-Shape or Near-Net-Shape Output

Eliminates extensive secondary machining on functional profiles, reducing total production lead time.

Materials & Specifications

Raw material selection governs mechanical performance, formability, and environmental durability. Common material grades processed in production include:

Material Category	Common Grades / Standards	Typical Thickness Range	Primary Functional Use
Carbon & Alloy Steel	Cold Rolled Steel (SPCC, SPCE), Hot Rolled Pickled & Oiled (HRPO), High-Strength Low-Alloy (Q345B, S355MC)	0.5 mm to 6.0 mm	Structural brackets, chassis frames, heavy-duty reinforcement plates
Stainless Steel	Austenitic (SUS 304, SUS 316), Ferritic (SUS 430)	0.3 mm to 3.0 mm	Medical device enclosures, corrosion-resistant clips, food-processing hardware
Aluminum Alloys	1050, 3003, 5052, 6061-T6	0.5 mm to 4.0 mm	Lightweight electronic chassis, aerospace brackets, heat dissipation plates
Copper & Alloys	C1100 (ETP Copper), C2680 (Brass), Phosphor Bronze (C5191)	0.2 mm to 2.5 mm	Electrical terminals, current-carrying busbars, grounding springs, RF shields

Manufacturing Process

Production follows a controlled sequence from raw stock preparation to finished component delivery:

Coil Slitting & Feed Prep: Raw coils are slit to match die feed requirements, ensuring stable strip tracking and minimizing edge camber.

Press Stamping & Forming: Executed using mechanical eccentric presses (45T to 400T) and hydraulic presses (100T to 630T) equipped with automated roll feeders and multi-stage progressive or compound dies.

In-Die Operations: Integration of automated tapping heads and stud or nut insertion units within the stamping die to combine operations.

Deburring & Cleaning: Parts undergo vibratory tumbling, centrifugal barrel finishing, or ultrasonic degreasing to eliminate burrs, stamping oils, and particulate residue.

Surface Finishing (Managed): Application of protective or functional coatings including zinc plating, nickel plating, powder coating, passivation, or anodizing per industrial standards.

Manufacturing Capability

Press Tonnage & Bed Size

45T to 630T mechanical power presses and heavy hydraulic presses. Maximum bed length up to 2,500 mm for large-envelope panels.

In-House Tooling Shop

Tool room equipped with CNC machining centers, wire EDM, surface grinders, and optical profile grinders for rapid die fabrication, tuning, and ongoing maintenance.

Volume Scalability

Configured for prototype batches (100 to 1,000 pcs via laser cutting or simple tooling) up to high-volume mass production (over 500,000 pcs per year via progressive dies).

Dimensional Capability

Standard linear tolerances down to plus or minus 0.05 mm, hole position tolerances within plus or minus 0.02 mm, and angular control within plus or minus 0.5 degrees depending on material thickness and tensile strength.

Quality Control

Incoming Material Inspection: Spectrometer testing for alloy verification and micrometer checks on incoming coil thickness and width.

First Article Inspection (FAI): Comprehensive dimensional and functional checks on initial samples using 3D CMM (Coordinate Measuring Machines) prior to full-scale production release.

In-Process Quality Control (IPQC): Operators execute routine dimensional checks using digital calipers, plug gauges, and height masters at designated intervals.

Vision Sorting Systems: Automated optical sorting systems deployed for high-volume runs to screen for dimensional anomalies, flash, and burrs.

Documentation Packages: Traceability packages provided upon request, including Material Test Reports (MTR), Dimensional Inspection Reports, and inspection standard compliance submissions.

Applications

Automotive & EV

Electronic control unit (ECU) housings, battery cell spacers, seat adjustment brackets, and structural reinforcement plates.

Electrical & Electronics

Circuit breaker components, stamped busbars, terminal blocks, DIN rail clips, and switchgear contact plates.

Industrial Equipment

Heavy-duty fastening brackets, hydraulic valve body covers, motor mounting plates, and ventilation louvers.

HVAC & Appliances

Compressor mounting brackets, burner manifolds, thermal shield panels, and structural interior supports.

OEM & Customization

Engineering Review

DFM (Design for Manufacturing) analysis conducted on incoming STEP, IGES, or PDF files to optimize wall thicknesses, bend radii, and hole locations for forming stability.

Prototyping Routes

Soft tooling or laser/CNC bending methods utilized for prototype validation prior to committing to production hard tooling investment.

Tooling Ownership

Customer-owned tooling agreements established upon project kickoff. Dies are stored in climate-controlled tool cribs with scheduled preventive maintenance.

Packaging & Logistics

Custom dunnage, anti-corrosion VCI packaging, returnable plastic bins, and barcoded labeling configured to match supply chain requirements.

Frequently Asked Questions

Q: What is your minimum order quantity (MOQ) for custom metal stamping parts?

A: MOQ depends primarily on tooling investment and raw material setup. For standard progressive die production, economical volumes typically start at 3,000 to 5,000 pieces per batch to offset press setup time and tooling amortization. For low-volume prototyping or bridge production, we utilize laser cutting and manual press brakes to bypass hard tooling costs.

Q: How do you handle dimensional tolerances for progressive die stamping?

A: Standard linear tolerances are maintained at plus or minus 0.05 mm, with tighter tolerances down to plus or minus 0.02 mm achievable depending on material thickness, tensile strength, and die precision. Tolerance capabilities are evaluated during our initial DFM review against your 2D engineering drawings.

Q: Who owns the tooling, and how is tooling maintenance managed?

A: All production tooling funded by the customer is the explicit property of the customer. Tooling is maintained in-house at no additional charge for the life of the project. Dies are cleaned, inspected, and stored securely after every production run to ensure long-term stability.

Q: What file formats do you accept for quotation and engineering review?

A: We accept 3D CAD models (STEP, IGES, XT) alongside 2D manufacturing drawings (PDF or AutoCAD DWG) containing explicit tolerances, surface finish requirements, material grades, and estimated annual usage (EAU). 2D drawings govern final acceptance criteria.

Q: Can you perform secondary operations or surface treatments in-house?

A: We perform in-house deburring, tapping, and simple spot welding. For surface finishes such as zinc plating, nickel plating, powder coating, e-coating, and passivation, we partner with audited, certified coating suppliers and manage the full process chain to deliver finished components.

Q: What quality documentation is provided with shipments?

A: Standard shipments include a Certificate of Compliance (CoC) and dimensional inspection data. Material Test Reports (MTRs) from the steel mill are provided for every heat lot. Full manufacturing approval documentation packages can be generated for automotive and medical applications upon request.

As one of the most professional metal stamping parts manufacturers and suppliers in China, we're featured by quality products and low price. Please rest assured to buy high-grade metal stamping parts made in China here from our factory. Contact us for pricelist and quotation.
