Ratchet Tie Down
Product Overview

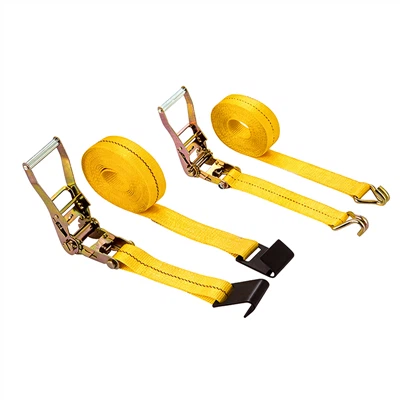

Industrial ratchet tie downs secure heavy cargo during flatbed, rail, and container transport. This assembly consists of high-tenacity polyester webbing, a heat-treated carbon steel ratchet buckle, and heavy-duty end fittings. Built to comply with recognized international lifting and cargo control standards, each unit transfers tension evenly across cargo while maintaining a safety factor of 3:1.
Key Features
Controlled Tensioning
Ratchet mechanism provides mechanical advantage, applying high tension with minimal manual effort.
01
Low Elongation Webbing
Polyester construction limits stretch to under 7% at maximum capacity, preventing cargo shift during transit.
02
Corrosion-Resistant Hardware
Steel components undergo yellow zinc plating or powder coating to withstand salt spray and moisture exposure.
03
Positive Locking System
Spring-loaded pawl engages the gear securely, preventing accidental release caused by road vibration.
04
Traceability
Permanent stenciling on the webbing indicates working load limit, length, and manufacturing batch numbers for compliance auditing.
05
Materials & Specifications
|
Parameter |
Specification Details |
|
Webbing Material |
100% High-Tenacity Multi-Filament Polyester (1000D/2000D) |
|
Webbing Width |
1 inch, 2 inches, 3 inches, 4 inches (25mm to 100mm) |
|
Standard Lengths |
15 ft, 27 ft, 30 ft (Custom lengths available upon request) |
|
Working Load Limit (WLL) |
1,000 lbs to 11,000 lbs (330 daN to 5,000 daN) |
|
Breaking Strength (BS) |
3,000 lbs to 33,000 lbs (Safety Factor 3:1) |
|
Hardware Material |
Drop-Forged Carbon Steel / Stamped Alloy Steel |
|
End Fitting Options |
Double J-Hook, Flat Hook, Wire Hook, D-Ring, E-Track Fitting |
|
Standard Compliance |
International Cargo Control Guidelines |
Webbing Weaving: Multi-filament polyester yarns feed into high-speed shuttleless looms. Programmable warp tension ensures consistent density and uniform edge construction.
Heat Setting: Woven rolls pass through a temperature-controlled thermal chamber to stabilize molecular structures, locking in width and reducing post-tension stretch.
Hardware Stamping & Forging: Carbon steel coils undergo progressive die stamping or drop forging to form ratchet frames, handles, and hooks.
Heat Treatment: Steel components are heated in continuous-mesh belt furnaces and oil-quenched to achieve a hardness range of HRC 38–42.
Surface Treatment
Parts are cleaned, degreased, and electroplated with yellow zinc (min. 8–12 microns coating thickness) to pass 72-hour neutral salt spray tests.
Assembly & Stitching
Industrial lockstitch machines use UV-resistant polyester thread in reinforced box-X patterns to secure hooks and loops.
Visual Evidence Note
Placeholder for Factory Production Video: Showing high-speed shuttleless loom weaving and automated CNC stamping lines in operation
Facility Scale: 15,000-square-meter production plant equipped with dedicated weaving, metal stamping, and assembly lines.
Output Capacity: Monthly production reaches 500,000 completed tie-down assemblies, supporting continuous large-scale supply contracts.
Equipment Inventory:
- 45 high-speed shuttleless weaving looms.
- 12 automatic CNC stamping presses (63T to 250T).
- 8 automated heat-treatment line units.
- 30 computerized heavy-duty sewing machines.
Engineering Note: Factory floor audits and live video feeds of our automated weaving and CNC stamping lines are available to qualified procurement teams upon request.
Quality Control
Raw Material Testing
Incoming polyester yarn batches undergo tensile strength and denier consistency verification.
In-Process Inspection
Dimensional checks on stamped components occur every 500 pieces using digital calipers and go/no-go gauges.
Destructive Proof Testing
Universal tensile testing machines pull random samples from every production lot to destruction, verifying that the actual breaking strength exceeds the 3:1 safety ratio.
Cycle Durability Testing
Ratchet mechanisms undergo 2,500 continuous locking and releasing cycles to check spring fatigue and pawl engagement.
Salt Spray Testing
Plated hardware undergoes continuous salt fog exposure to confirm corrosion resistance meets ASTM B117 standards.
Visual Evidence Note
Placeholder for Laboratory Testing Video: Demonstrating universal tensile strength destruction test and salt fog chamber inspection
Applications
Flatbed Trucking
Securing structural steel, lumber, and palletized building materials on open-deck trailers.
Automotive Transport
Tie-down straps for vehicle haulers and recreational vehicle (RV) towing.
Intermodal Logistics
Securing heavy machinery and crates inside ocean freight containers and railway cars.
Industrial Rigging & Warehousing
Temporary bundling of heavy pipes, industrial cables, and sheet metal stacks.
OEM & Customization
Webbing Customization
Tailored widths, breaking strengths, custom Pantone colors, and thermal-transfer printed company logos or warning text.
Hardware Modifications
Custom end-fitting configurations, alternative hook geometries (e.g., wider opening J-hooks), and stainless steel (AISI 304/316) upgrades for marine environments.
Packaging Options
Individual shrink-wrap with instruction cards, display boxes, or bulk pallet packing with barcode labeling for retail and wholesale distribution.
